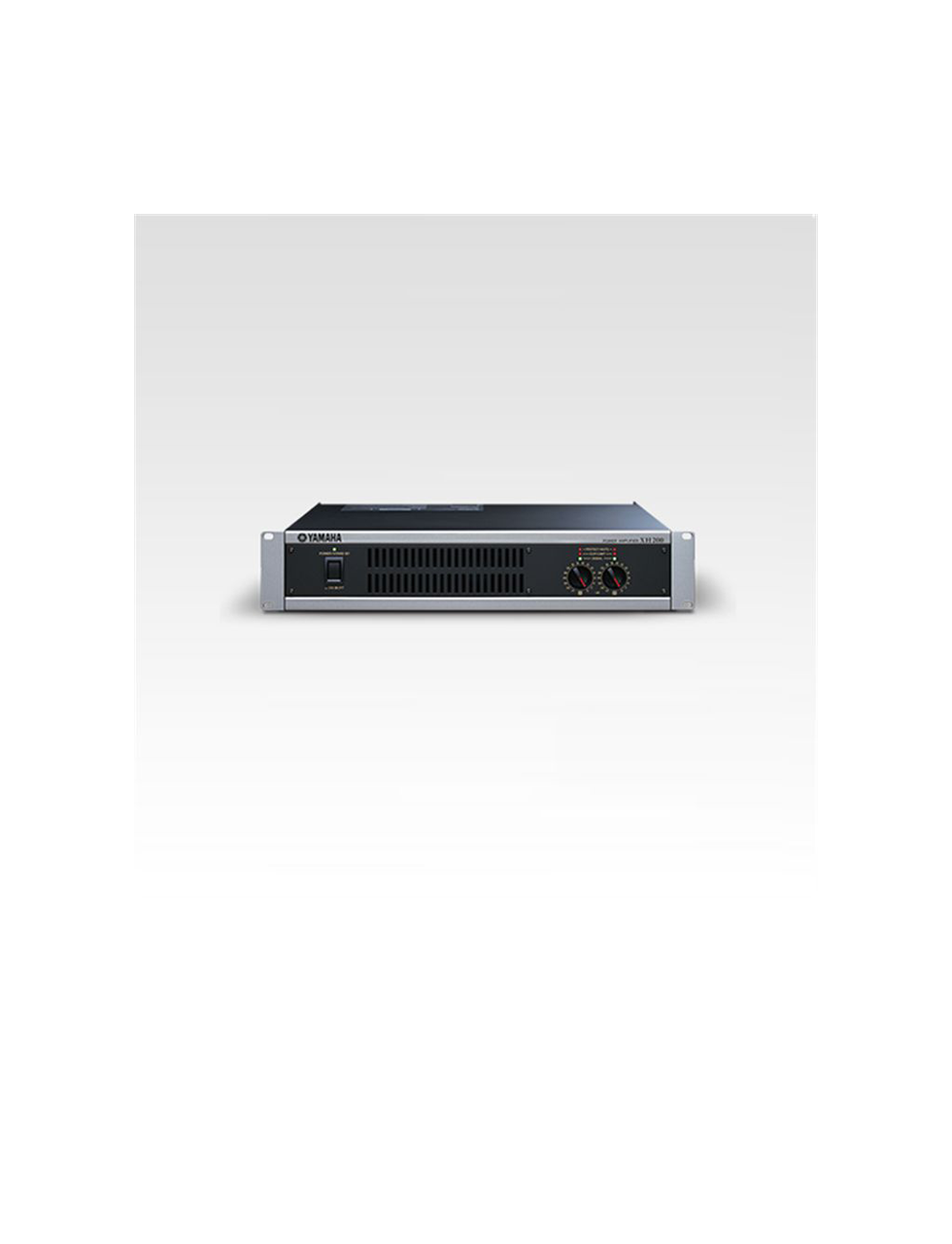

Yamaha XH200 Amplifier

Description Power Output Level 20Hz 20kHz THD N=0.1% �� 70V/channel RL=24. 200W x 2 4O 70V/channel RL=24. 200W x 2 8 Ohms / BRIDGE 100V/channel RL=48. 200W x 2 70V/BRIDGE RL=16 Ohms 100V/channel RL=48. 200W x 2 Sensitivity RL=8. Att.max S/N Ratio 20Hz-20kHz(DIN AUDIO) Idle Power Consumption 40W 1/8 Power Consumption (4 Ohms) 250W Power Bandwidth (Half power THD N=0.5%) 10Hz – 40kHz THD N 20Hz 20kHz, half power 0.1% Intermodulation Distortion 60Hz: 7kHz, 4:1, half power 0.1% Frequency Response f=20Hz-20kHz -0.5dB, 0dB, 0dB 80Hz-20kHz Channel Separation Half power RL=8 Ohms, 1kHz ATT. Max input 600 Ohms shunt 60dB(24 Ohms) Residual Noise 20Hz-20kHz (DIN AUDIO) –65dB Damping Factor 8 Ohms, f=1kHz 100 Voltage Gain ATT. max 38dB(100V), 35dB(70V) Maximum Input Voltage 22dB Input Impedance 30 kOhms (Balance) 15 kOhms (Unbalance) Controls Front panel POWER switch (push on/push off), attenuator (31position) x 2 Rear panel MODE switch (70V/100V) x 1 HPF switch (40Hz/80Hz 12dB/oct) x 1 Connectors Input euro-block (balance)/ch Output Barrier strip/ch DATA PORT D-sub15P, Monitor:Output Level/ch,Active/ch, Model Detect Control:Mute/ch Power AC inlet x 1 Indicators POWER x 1 (Green) SIGNAL x 2(Green) CLIP/LIMIT x 2 (Red) PROTECT/MUTE x 2 (Red) Load Protection POWER switch on/off mute, DC-fault output relay off Amplifier Protection thermal (heatsink temp =90°C), VI limiter(RL = 16 Ohms) Limiter Circuit clip limiting,THD = 1.0% Cooling/Variable-speed fan stop-50C-variable-70C-Hi Power Requirements UC: 120V / 60Hz, EU: 230V / 50Hz, A: 240V / 50Hz Dimensions (W x H x D) 480 x 88 x 412.2 mm (18-7/8″ x 3-7/16″ x 16-1/4″) Weight 10kg (22 lbs.)
