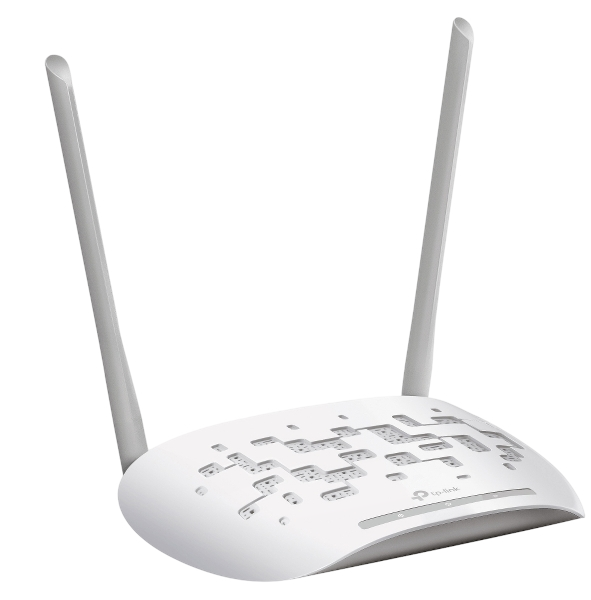

TP-LINK TL-WA801N 300Mbps Wireless N Access Point

HARDWARE FEATURES Interface 1× 10/100 M Ethernet Port(RJ45) Support Passive PoE Button Power On/Off Button, WPS Button, Reset Button External Power Supply 9VDC / 0.6A Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (182 × 130 × 36 mm) Antenna 2 Fixed Omni-Directional Antennas WIRELESS FEATURES Frequency 2.4 GHz Signal Rate 300 Mbps at 2.4 GHz Reception Sensitivity 11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm Wireless Modes AP Mode Multi-SSID Mode Client Mode Range Extender Mode Wireless Functions Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor Wireless Security WEP, WPA/WPA2, WPA/WPA2-PSK encryptions Quality of Service WMM Management Features SNMP Advanced Features Up to 30 meters Passive PoE is supported Transmission Power < 20dBm OTHER Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 20002   Protocol: UDP OTHERS Certification FCC, RoHS Package Content Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide Environment Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
