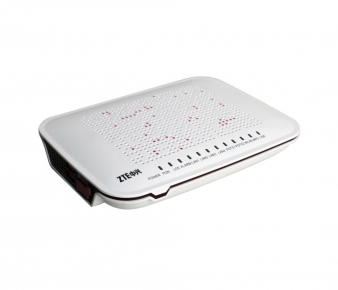

ZTE F660 GPON CPE, WiFi, 1x PON, 2x POTS, 4x GbE, 1x USB ports

ZTE F660 GPON CPE, WiFi, 1x PON, 2x POTS, 4x GbE, 1x USB ports   Supplier Number   180000145377    Description   The F660 is a high-end home gateway in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F660 provides two POTS ports, four GE/FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port. The F660 features high- performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.   ZXHN F660 is a GPON Optical Network Termination unit for HGU (Home Gateway Unit) with four 10/100/1000M Ethernet ports, two POTS ports, one USB ports and WIFI used in FTTH application, with 2.488Gbps downstream and 1.244Gbps upstream GPON interface    Features   • ITU-T G.984.x GPON standards •1.244Gbps burst mode upstream, 2.488Gbps downstream • Upstream 1310nm,   1490nm • Output optical 0.5dBm,Max 5dBm • Receiver sensitivity: 28dBm • Frequency: 2.4 GHz • IEEE 802.11b/g/n •128 bits WEP data encryption • WPA/WPA2 (Wi-Fi Protected Access) Security • WPS (Wireless Protected Setup) • WMM(Wi-Fi Multi Media) • Max 4 Broadcast/hide SSIDs • Max 128 users one SSID • SIP/ H.248/ MGCP • DTMF Dialing / DTMF Digits • 5-REN, balanced ring, 55V RMS • Codec: G.711 (μ-law and A-law), G.726, G.729, G.723.1 • 32 ms echo cancellation • VAD/CNG • IN-BAND method • DTMF encoding by RFC 2833 • T.38/T.30 FAX • Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing • IPv6 / IPv4 Dual Stack • NAT/ SNTP • ALG • Static routing, and dynamic routing in RIPV1/V2 • PPPoE Client/Pass Through • DNS Client/Server • IGMP v1/ v2/ v3 • IGMP proxy/snooping   and more…
