Ubiquiti EdgePoint EP-R6 Layer-3 router WISP Control Point

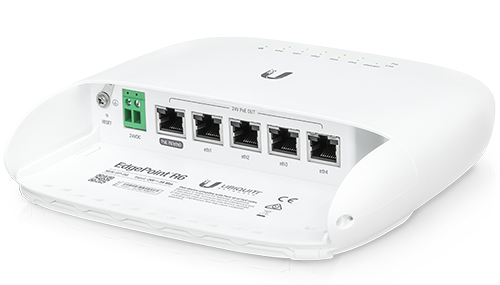

**Ubiquiti EdgePoint EP-R6 Layer-3 router: the WISP Control Point** The Ubiquiti EdgePoint EP-R6 Layer-3 router is an intelligent WISP control point with FiberProtect. It is the first application-specific designed WISP control point from Ubiquiti. The EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities. **Features:** – Weatherproof enclosure for outdoor use – Powerful routing or switching features – Fiber backhaul capability – All-in-one design The EdgePoint features FiberProtect, which significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI), improving data signal integrity and consolidating the wired data backhaul to a single fiber cable run for long-distance connectivity. **Technical Specifications:** – Dimensions: 188.6 x 177.1 x 49.8 mm – Weight: 605 g – Max. Power Consumption: 7W (excluding PoE output) – Power Input: – (1) DC terminal block or – (1) RJ45 (eth0) – Self-correcting polarity protection on the DC terminal block – Diode ORed protection on all power inputs – Power Supply: – Min. 24V / 0.3A (excluding PoE output power) – VDC input: 24V, 3A – Passive PoE input: – (1) 24V / 1.4A, 4-pair ( 1, 2, 4, 5; -3, 6, 7, 8) passive PoE, eth0 – Do NOT configure eth0 in PoE output mode if using a PoE input power source – Passive PoE output: – (5) 24V / 0.7A, 2-pair ( 4, 5; -7, 8) passive PoE, eth0 to eth4 – Power monitoring: – (1) DC terminal block, input power – (1) RJ45, eth0, input power – Supported voltage range: 26 to 16VDC – Button reset – LEDs: system – power, eth0 to eth4 – speed/link/activity, PoE, eth5/SFP – speed/link/activity – Ports: – Data ports: (5) 10/100/1000 RJ45 ports, (1) 1 Gbps SFP port – Processor: dual-core 880 MHz MIPS1004Kc with hardware acceleration for packet processing – System memory: 256 MB DDR3-1600 RAM – Code storage: 256 MB NAND – Certifications: CE, FCC, IC – Pole mount: Yes – Operating temperature: -20 to 65° C (-4 to 149° F) – Operating humidity: 10 to 90% noncondensing.
