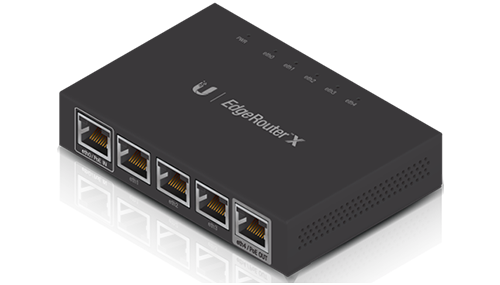

Ubiquiti ER-X EdgeMAX EdgeRouter X

The Ubiquiti EdgeRouter X is a compact and reliable router that offers excellent value for money. It combines the reliability of a carrier-class device with an ultra-compact form factor. The ER-X can be powered using an external power adapter or by a 24V passive PoE input. It also supports a passive PoE passthrough option, which allows you to connect a single airMAX device. Key Features: * 5 Gigabit RJ45 ports * Passive PoE passthrough option * Power via 24V passive PoE or power adapter * Ports configurable for line-rate, Layer-2 switching * 130 kpps for 64-byte packets * 1 Gbps for 1518-byte packets The product model number is ER-X. The EdgeRouter X is powered by a proprietary and intuitive graphical interface called EdgeOSTM. This interface makes it easy to configure the router for routing, security, and management features. Advanced network professionals can also use the integrated CLI for quick and direct access with familiar commands. The EdgeRouter X provides a user-friendly graphical user interface for convenient setup and control. It can be accessed via a network port and web browser, allowing for intuitive management with a virtual view of the ports. The Dashboard displays detailed statistics such as IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface. Technical Specifications: General: * Dimensions: 110 x 75 x 22 mm (4.33 x 2.95 x 0.87″) * Weight: 175 g (6.17 oz) * Max. Power Consumption: 5W * Power Input: 12VDC, 0.5A power adapter (included) or 24V Passive PoE * Power Supply: External AC/DC adapter * Supported Voltage Range: 9 to 26VDC * Button: Reset * LED: Power, Ethernet 0-4 * Processor: Dual-Core 880 MHz, MIPS1004Kc * System Memory: 256 MB DDR3 RAM * Code Storage: 256 MB NAND * Certifications: CE, FCC, IC * Wall-Mount: Yes * ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV * Operating Temperature: -10 to 45° C (14 to 113° F) * Operating Humidity: 10 to 90% Noncondensing Networking Interfaces: * Data/PoE Input Port: (1) 10/100/1000 RJ45 Port * Data Ports: (3) 10/100/1000 RJ45 Ports * Data/PoE Passthrough Port: (1) 10/100/1000 RJ45 Port
